哈德沃角码

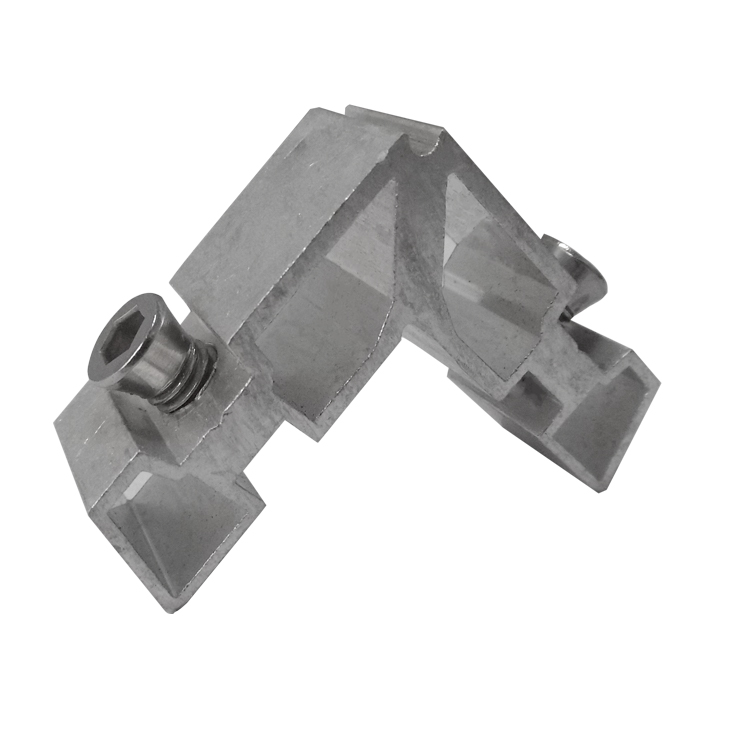

The connection structure between the integrated expansion glue injection corner code columns

The connection structure between the integrated expansion glue corner code and the column includes a crossbeam and a column. Multiple spring pins are installed on the side of the crossbeam, and holes that match the spring pins are provided on the side of the column. The crossbeam is connected to the column through the spring pins The crossbeam of this utility model is connected to the column through spring pins, making the connection operation between the crossbeam and the column very convenient, greatly improving installation efficiency and saving construction costs.

It also ensures the accuracy and fastness of installation, and guarantees the aesthetics of the overall curtain wall structure system; And the crossbeam can therefore be made of closed profiles, which improves the utilization rate of materials and enhances the torsional bearing capacity of the crossbeam compared to open profiles.

Install the crossbeam, glass body, and vertical cover plate. The installation column, installation crossbeam, and vertical cover plate are all hollow structures. The number of installation crossbeams is two, and one end of the two installation crossbeams is fixedly connected to the middle of the installation column through self tapping screws. The two installation crossbeams are symmetrically arranged along the middle of the installation column. The vertical cover plate is located on one side of the installation column, and a through groove is formed between the vertical cover plate and the installation column. Two extension blocks are inserted into the through groove. The installation column and installation crossbeam are set to facilitate the installation of the glass body, which can solve the installation problem of closed aluminum alloy crossbeams in the curtain wall system. At the same time, it greatly saves material costs, labor costs for curtain wall installation, and the integrated expansion glue injection angle code. The defect that the closed horizontal and vertical connections of glass curtain walls must be in a specific order has been eliminated Put it away.
