哈德沃角码

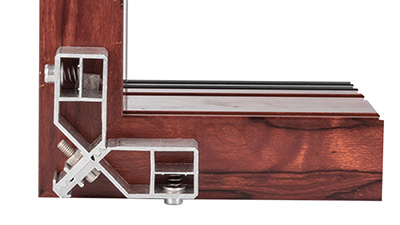

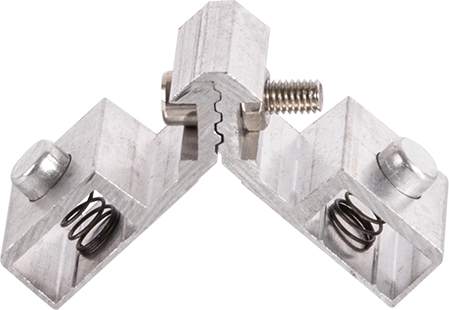

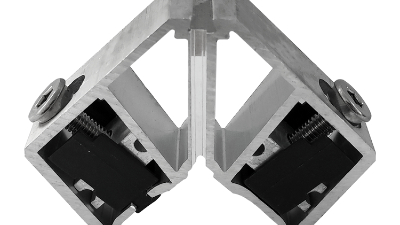

The advantage of the activity corner code is that when there is a misalignment in the corner assembly, it can be loosened and adjusted again, which is incomparable to ordinary corner codes! The movable corner code can achieve on-site assembly of doors and windows. Door and window engineering relies on this characteristic of the movable corner code to ensure safety. After receiving the order, the factory cuts the aluminum alloy profile and punches out the installation hole of the movable corner code, directly boxes it, and ships it directly to the site for assembly with the movable corner code, door and window hardware, etc

Profile cost: Due to the simple principle of connecting with movable corner codes, the strength of the corners is reflected by the structure, with a small amount of aluminum used and a small profile chamber requirement (thickness of 14 millimeters). Compared with traditional extruded corner codes (thickness of about 20 millimeters), using movable corner codes for profile standard windows can save 10% to 15% of the profile material consumption during corner strength testing

When external pressure is applied to the test angle, the extruded outer skin of the aluminum alloy profile is gradually flattened and detached from the corner code due to external forces; Due to the use of a reasonable connection structure, the pressure is directly transmitted to the movable corner code itself during the experiment until the movable corner code is completely destroyed before the test corner is damaged.
